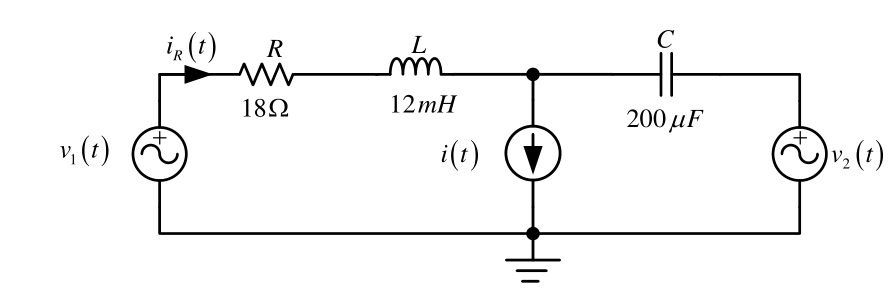

Figure 7 illustrates an electrical circuit:

The signals are:

$v_{1} (t) = 15 \cdot sin (1000 \cdot t) V$

$v_{2} (t) = 10 \cdot sin (1500 \cdot t + 6 0^{0}) V$

$i (t) = 0.555 A$
(א)Calculate the current that flows through the resistor R, $i_R(t)$.
(ב)Calculate the average current that flows through the resistor R.
(ג)Calculate the effective current that flows through the resistor R.
(ד)Calculate the average power dissipates in the resistor R.
