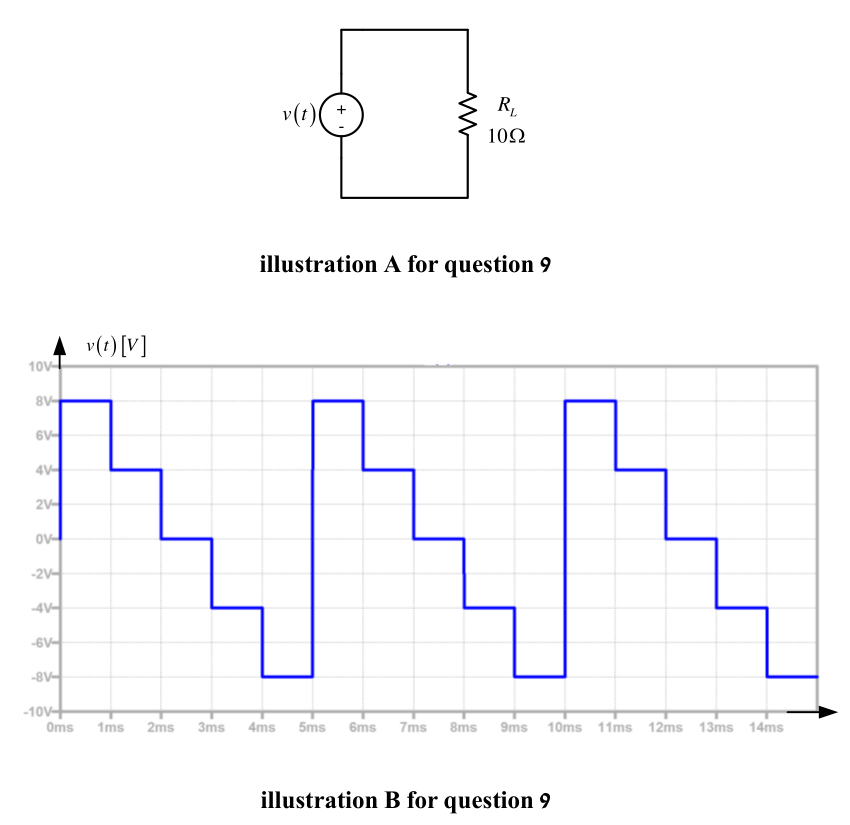

In the illustration A for question 9, an electrical circuit is presented and in the illustration B the voltage source signal $v(t)$ is displayed.

Note: The units of the number values in the timeline are in - ms

( $R_{L} = 10 Ω$ )
(א)Calculate the frequency of the voltage source $v(t)$.
(ב)Calculate the average value of the voltage across the resistor $R_L$.
(ג)Calculate the effective value of the voltage across the resistor $R_L$.
(ד)Calculate the average power dissipated in the resistor $R_L$.
